P25 Panel Install Series 5Pin/4Pin

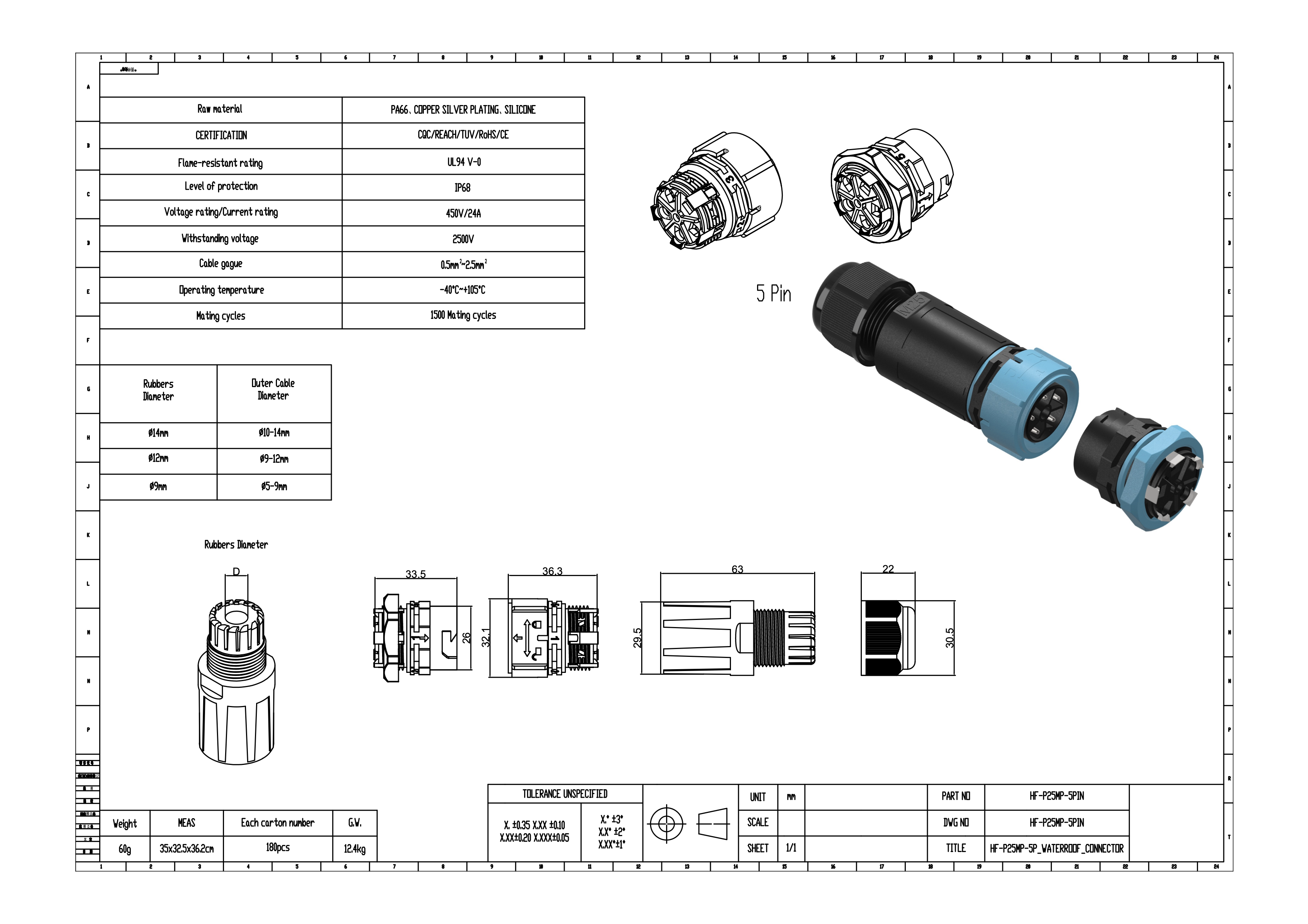

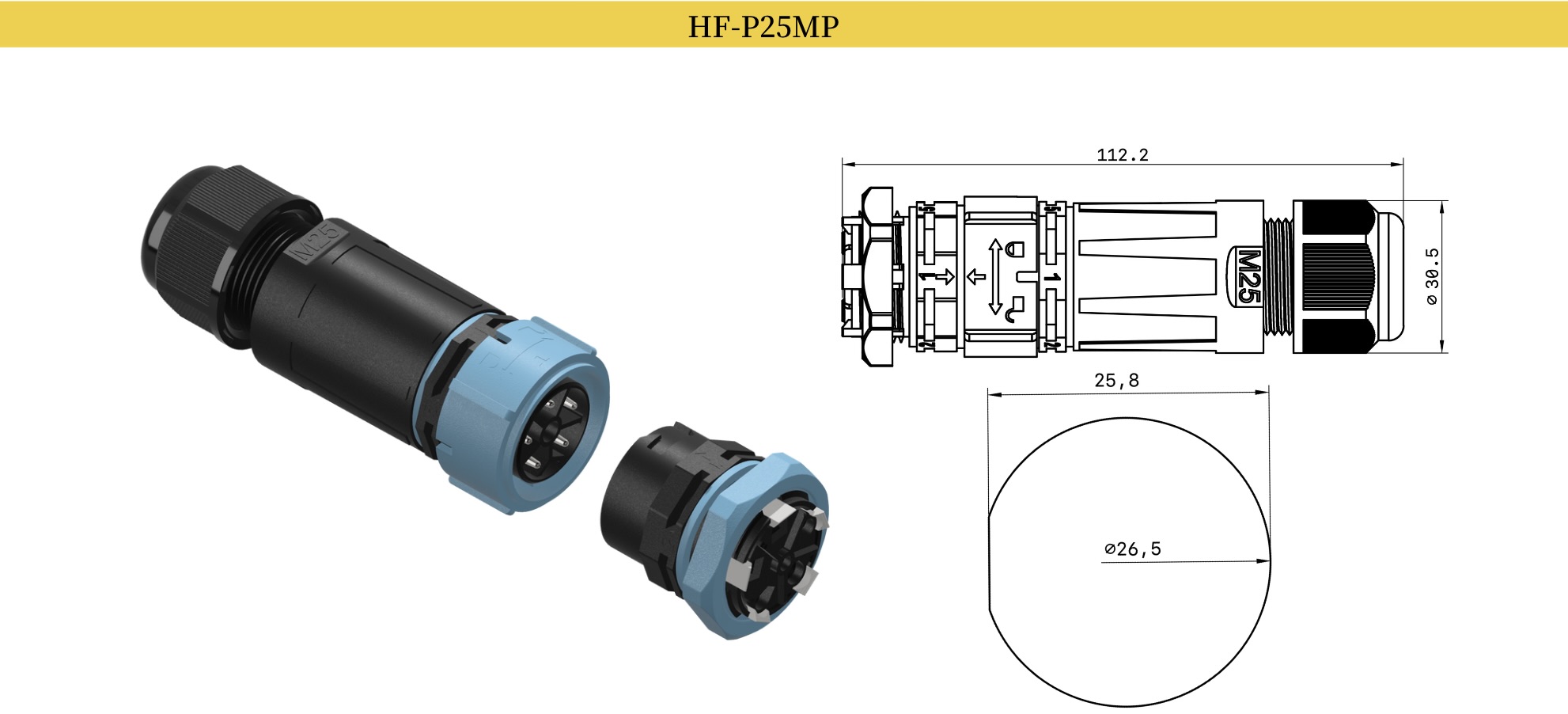

HF-P25MP IP68 Waterproof Panel-Mount Connector – The Fixed-Point Fortress for Multi-Pin Power

Loose wires in wet panels? Not anymore.
The HUA FANG HF-P25MP IP68 waterproof panel-mount connector is the rock-solid fixed anchor for 4/5-pin setups, delivering reliable 3-phase power or RGBW control right where you need it—inside enclosures, on fixtures, or through walls.

• IP68 Unbreakable Seal

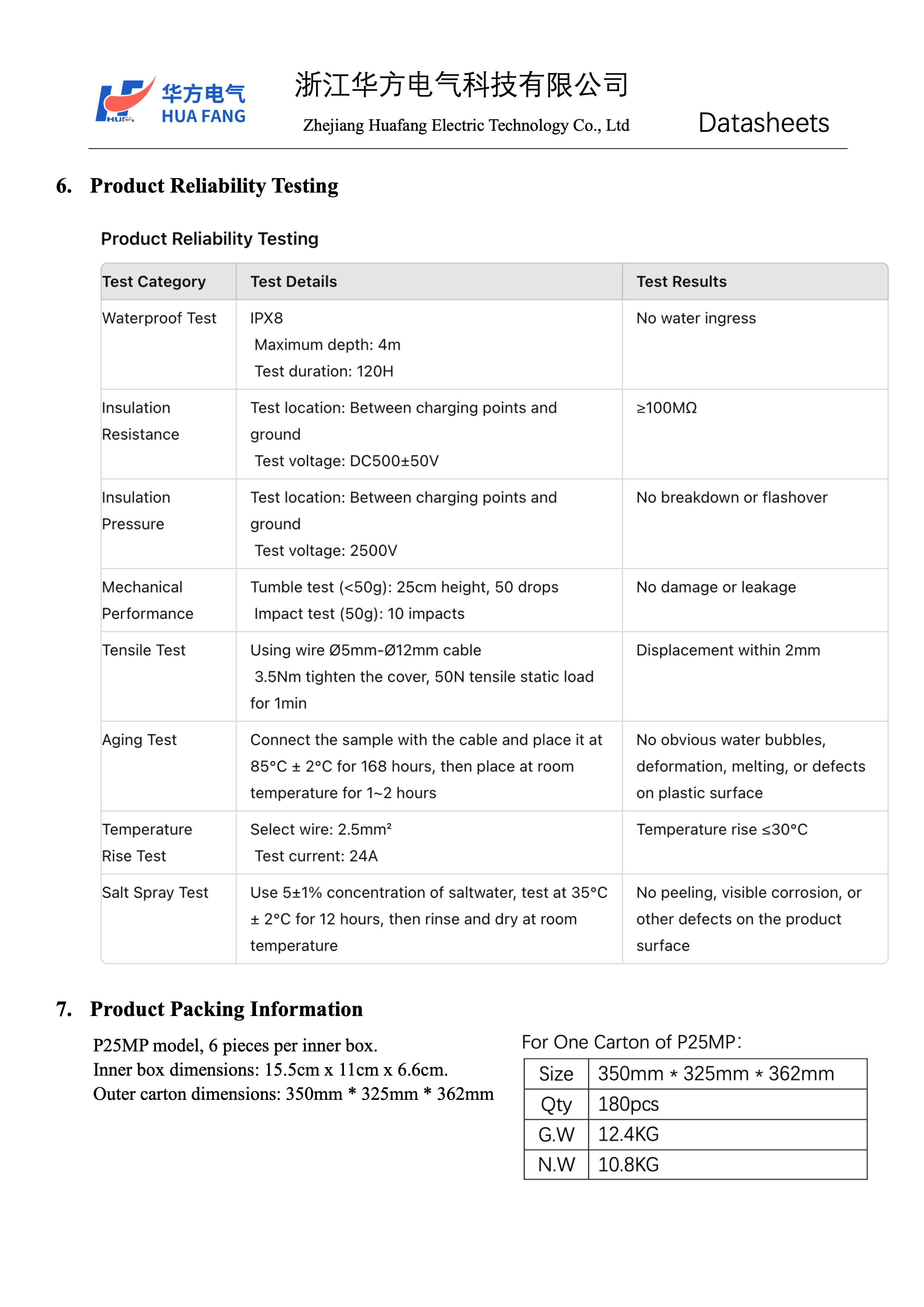

  Submersible to 4m water depth for 120 hours, 100% dust-proof. Mount it on a fountain controller or outdoor cabinet—water stays out, power stays on.

• 4/5-Pin Phase Master

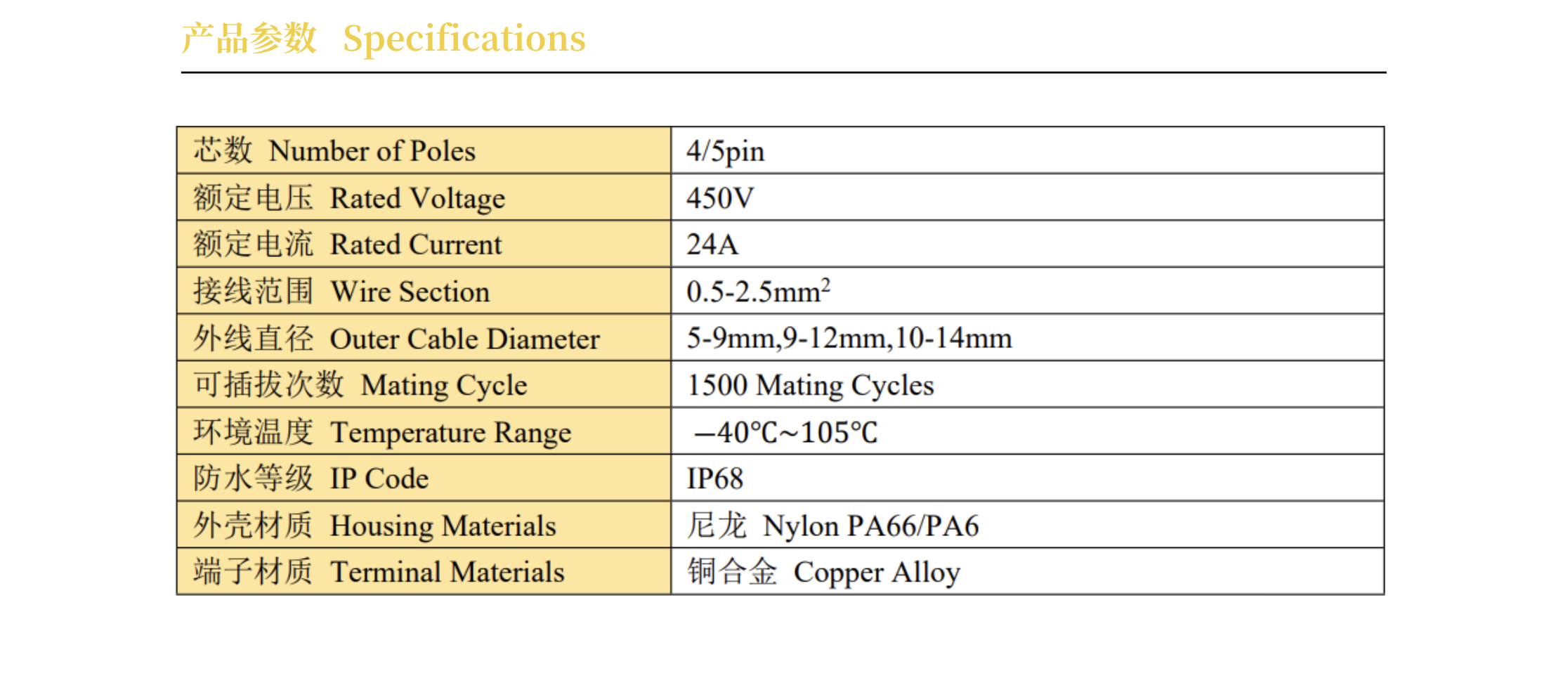

  450V / 24A per pin — 4Pin for 3-phase + ground (L1/L2/L3 + PE); 5Pin adds neutral for mixed loads. Perfect for balanced lighting systems.

• Cable Compatibility King
  Rear gland accepts 0.5–2.5mm² wires and 5–9mm, 9–12mm, 10–14mm cables.

• −40 °C to +105 °C Survivor
  Handles extreme climates without flinching.

• Nylon PA66/PA6 Housing + Copper Alloy Pins
  UV/salt/vibration-proof, with secure panel threading for permanent installs.

• 25-Second Panel Setup

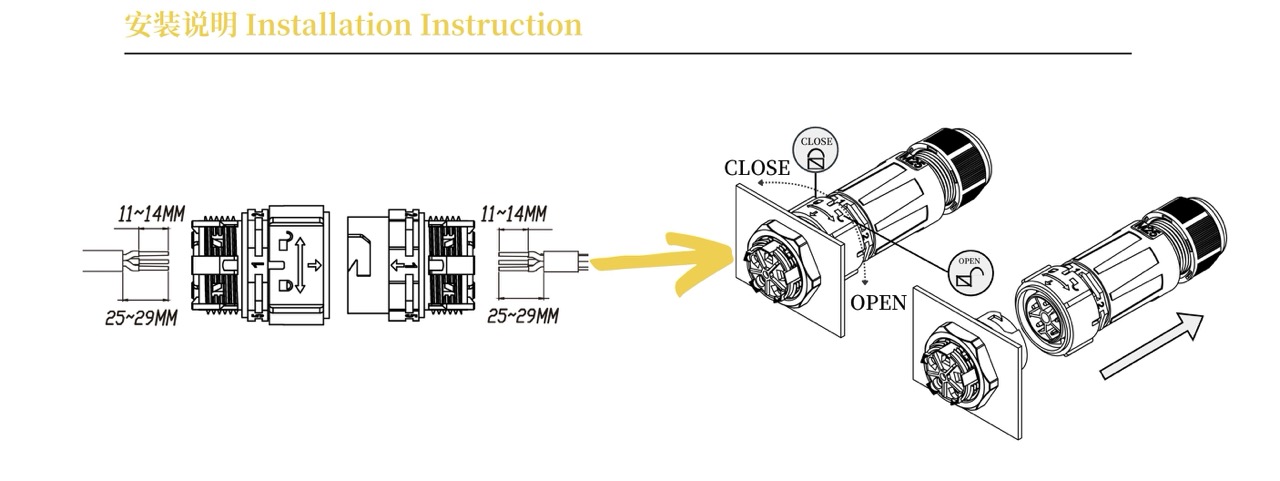

  Drill → insert → tighten nut → wire and seal. Tool-free wiring, immovable mount.

No dangling cables, no leaks—just a clean, permanent power point that disappears into the design.

Perfect for
3-phase lighting control panels | RGBW facade driver boxes | fountain pump enclosures | smart city control cabinets | marine equipment panels | outdoor transformer housings

Ready for fixed, flawless connections?
→Send Inquiry

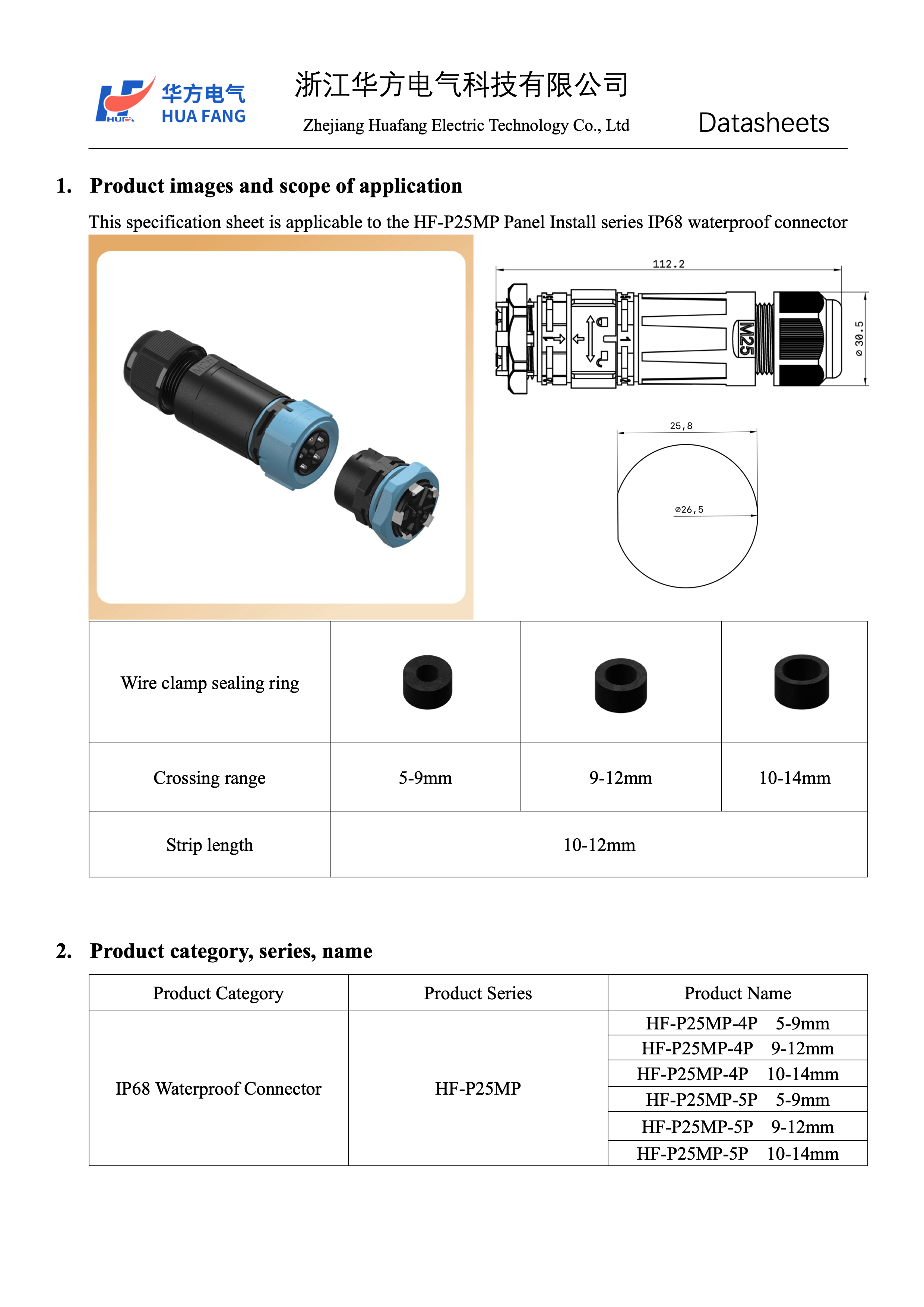

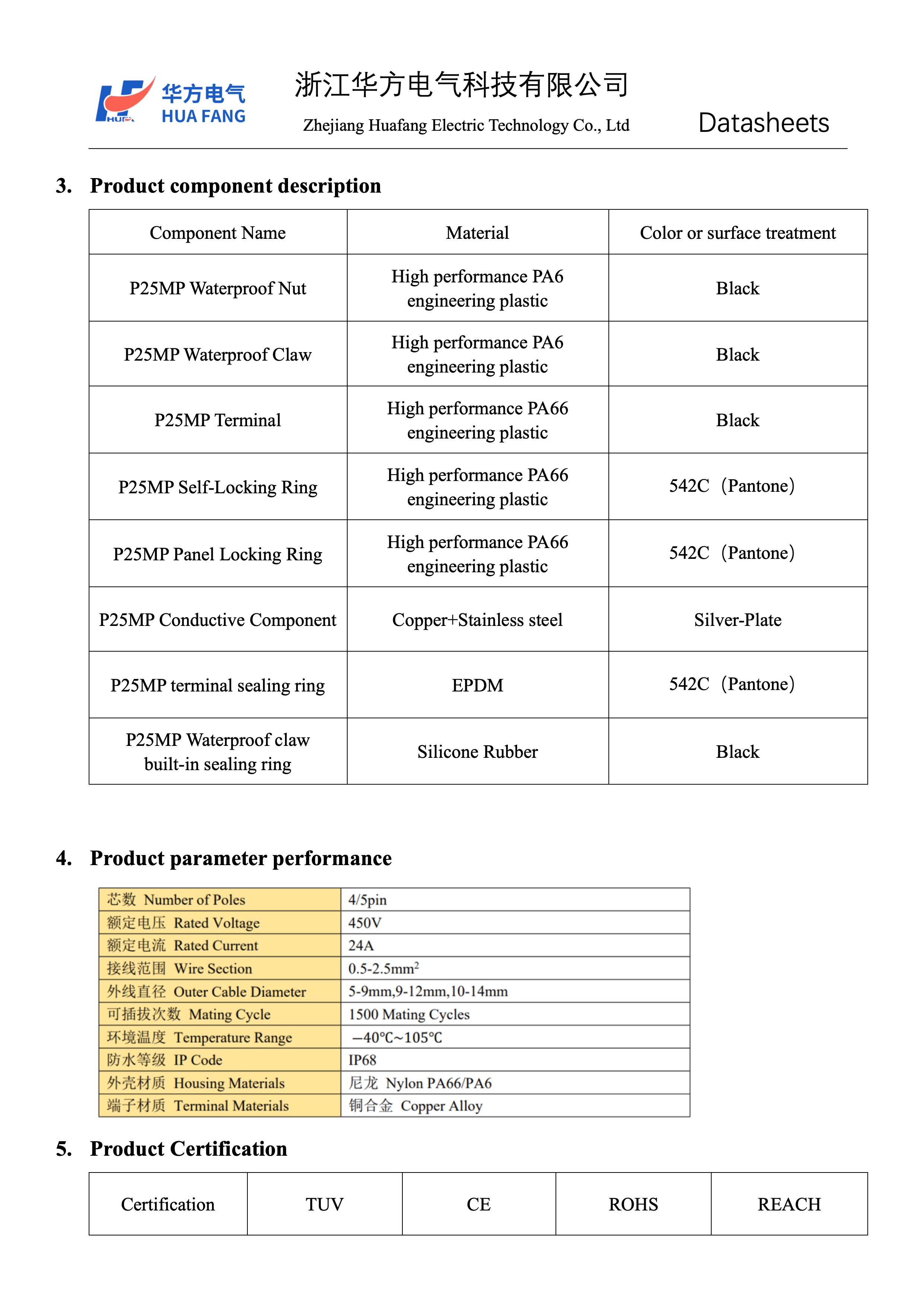

→Download HF-P25MP Datasheet PDF

HUA FANG – Mounting power securely, one panel at a time.
