P20 Panel Install Series 3Pin/2Pin
HF-P20MP IP68 Waterproof Panel-Mount Connector – The Rock-Solid Anchor for Fixed Power Points
Loose panels? Wet enclosures? Not on this connector’s watch.
The HUA FANG HF-P20MP IP68 waterproof panel-mount connector is the fixed-mount hero that locks power securely from the inside out—perfect for control boxes, outdoor fixtures, or any setup where the connection stays put.
IP68 Bulletproof Seal
Submersible 4m/120h+, dust-proof forever. Mount it on a fountain pump housing or garden light box—rain can’t touch it.2/3-Pin Power Anchor
450V / 24A — delivers steady power for LED drivers, sensors, or small motors without a wobble.Cable Flexibility
Accepts 0.5–2.5mm² wires and 5–9mm or 9–12mm cables through the rear gland.−40 °C to +105 °C Tough
No cracking in winter frost, no softening in summer heat.Nylon PA66/PA6 Housing + Copper Alloy Pins
UV/salt/impact-resistant, with secure panel threading for vibration-proof installs.20-Second Panel Install

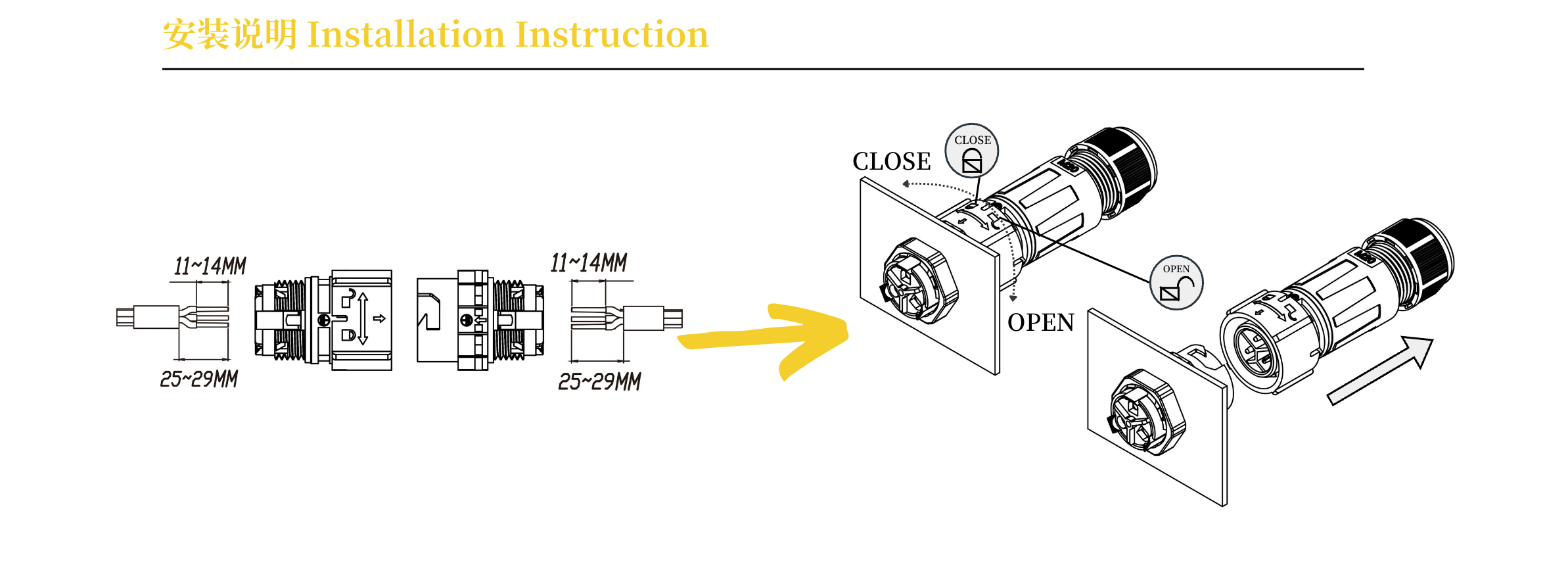

Drill → insert → tighten nut → wire and seal. Tool-free wiring, rock-solid mount.
No loose plugs, no water sneaking in—just a permanent, invisible power point that never moves.
Perfect for
Outdoor control panels | garden spike light bases | fountain pump housings | landscape transformer boxes | marine equipment panels | underground junction enclosures
Ready for unbreakable fixed connections?
→Send Inquiry
→Download HF-P20MP Datasheet PDF
HUA FANG – Anchoring power where it belongs, come rain or shine.
