Thinking about waterproof connectors in project applications
author: HUA FANG
2025-08-30
Huafang Electric boasts a team of experienced senior engineers who have dedicated years of experience in the research, development, and application of circular electrical waterproof connectors, focusing on topological optimization of structural configuration, temperature rise performance, and waterproof sealing performance. We have guided numerous projects in sectors ranging from military to industrial automation, accumulating extensive experience in connector selection and optimization. Today, for the purpose of technical exchange, we will analyze the core advantages of Huafang Electric's waterproof connectors, particularly the superior performance of their quick-lock self-locking design, quick-connect bayonet wiring, and assembly-style design, to provide a reference for fellow engineers in their selection process.
The core differences in waterproof ratings: the engineering implications of IP66, IP67, and IP68
According to the IEC 60529 standard, waterproof rating is a key indicator for evaluating connector reliability. The following is an explanation of the engineering differences between IP66, IP67, and IP68:
- IP66: Withstands powerful water jets of 100 kPa and 100 L/min, making it suitable for dynamic scenarios (such as rain or high-pressure cleaning during equipment operation).
- IP67: Withstands short-term immersion in water up to 1 meter for 30 minutes, suitable for static shallow water environments, relying on the compression recovery force of the seal.
- IP68: Withstands deeper or longer immersion (e.g., 2 meters for 24 hours). We use the more stringent TUV test of 4 meters for 120 hours without leaks.
When selecting a product, Huafang Electric recommends that regardless of the project's waterproof rating, IP68 waterproofing is always a good choice for electrical connections, as any unexpected physical event could expose the connection to even harsher environments.
Huafang Electric Quick Wiring-Self Locking Type: Redefining the Reliability of Waterproof Connectors
Huafang Electric's waterproof connector series offers a variety of locking mechanisms, among which the quick-connect self-locking type stands out for its excellent performance, surpassing the traditional threaded design:
- Quick-connect, self-locking type: Automatically locks through quick insertion, combining rigid locking and moderately flexible design to provide an instantaneous, high-pressure seal. Laboratory testing shows that the quick-connect, self-locking type achieves a water seepage rate as low as 3% under quasi-IP66 dynamic spray conditions, surpassing the 5% of threaded types. Its unique advantages lie in its rapid installation (saving an average of 30% in operation time) and vibration stability. In vibration testing, the contact resistance fluctuation was less than 2mΩ, far exceeding the performance of threaded types in dynamic environments.
- Threaded type: Relying on a helical engagement, it provides uniform preload but takes longer to install. While threaded types perform stably under dynamic spray conditions, they are sensitive to high-frequency vibrations. Minor displacements can widen the sealing gap, impacting long-term reliability.
The core advantage of quick-connect, self-locking connectors lies in their balanced rigidity and elasticity, ensuring both rapid installation and dynamic waterproofing. In Huafang Electric's industrial robot application, quick-connect, self-locking connectors achieved a 20% higher pass rate in dynamic spray tests than threaded connectors, making them the preferred choice for high-reliability scenarios.
A rational review of the IP69K rating: focusing on actual needs
Some suppliers claim their products meet IP69K (protection against temperatures up to 80°C and high-pressure water jets of 8-10 MPa). However, Huafang Electric believes that IP69K is more suitable for specific scenarios (such as food processing equipment), and that IP68 is sufficient for most aviation plug applications. Pursuing IP69K can lead to cost increases (over 30%) and increased operational complexity. Huafang Electric's waterproof connectors achieve high consistency within the IP68 standard through an optimized sealing structure, eliminating the need to blindly pursue IP69K and achieving a balance between performance and cost-effectiveness. Engineers are advised to verify performance through actual testing and avoid relying on nominal labels.
Quick-connect snap-on wiring: the perfect combination of efficiency and reliability
- Quick-connect snap-on: Connects wires quickly by snapping into place, offering extremely efficient installation (reducing single-connection time by 50%). Laboratory tests show a stable contact resistance of 5-8mΩ, and excellent waterproof performance in dynamic spray and short-term immersion, thanks to uniform sealing pressure distribution. Compared to traditional methods, the quick-connect snap-on system reduces loosening by 30% in high-vibration environments, significantly improving safety.
- Riveted PIN terminals: Offer stable contact (resistance <5mΩ), but require specialized equipment and increase process complexity.
- Screw-on: Provides strong contact force and reliable waterproofing, but requires longer installation time and lowers efficiency.
- PIN replacement: Flexible but relies on subsequent sealing processes, making consistent waterproofing difficult to ensure.
The quick-connect snap-on system's speed and reliability make it widely popular in industrial automation. In Huafang Electric's test cases, the quick-connect snap-on system achieved a failure rate of only one-third that of riveted and screw-on methods in high-current scenarios, completely eliminating the arcing and water seepage risks associated with traditional wiring methods.

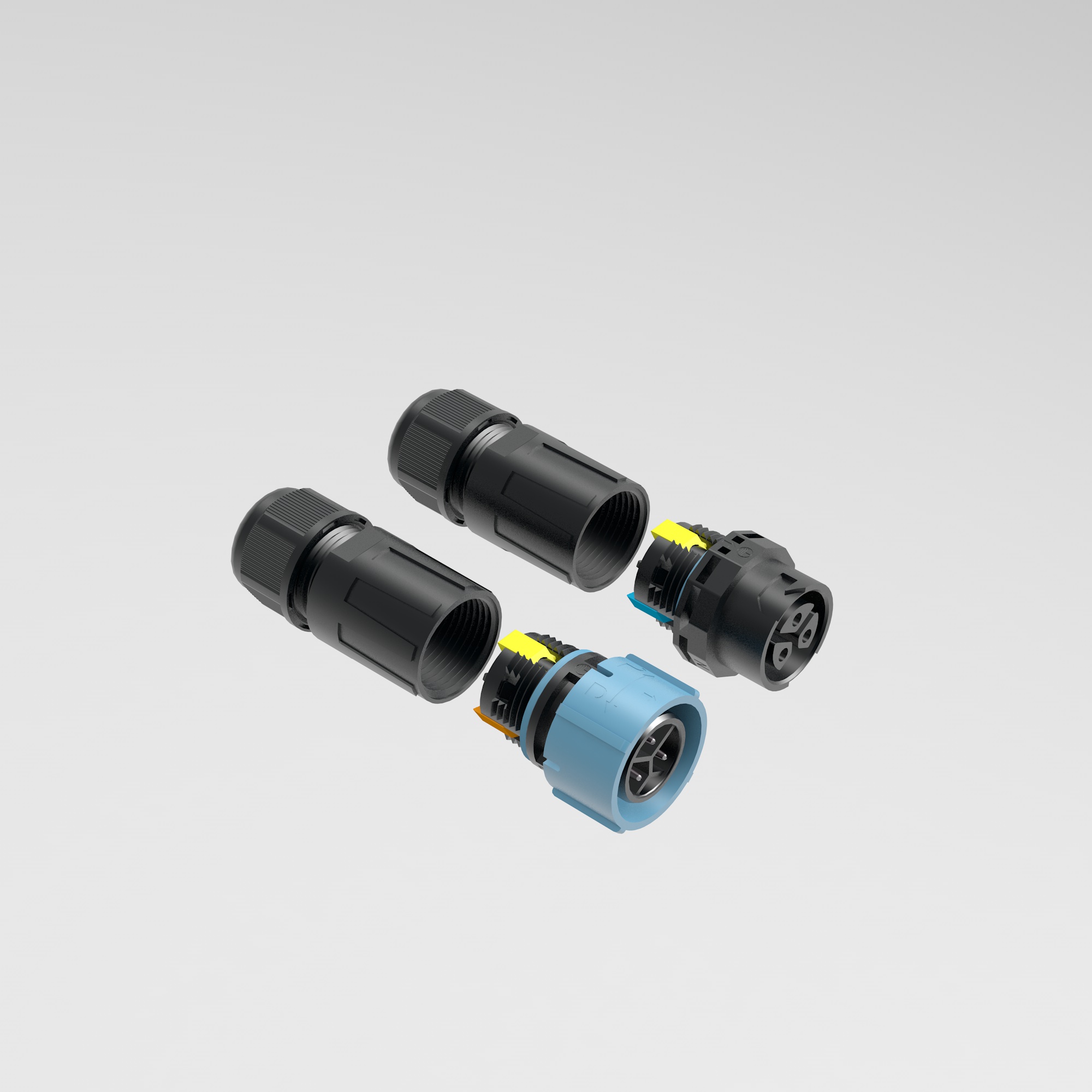

Assembly connector: the best balance between flexibility and cost
- Assembly: Supports on-site custom wiring, adapting to diverse application scenarios. Huafang Electric optimizes the sealing component design to ensure that the assembled connector maintains high waterproof performance at IP67 and even IP68 standards. Compared to injection-molded connectors, the assembly type reduces costs by approximately 20% and eliminates the need for complex wiring harness processing, making it suitable for rapid deployment and maintenance.
- Injection-molded connector with wires: The one-piece molding provides extremely high waterproof performance (easily reaching IP67+), but it cannot be modified on-site and relies on the supply chain's processing capabilities, increasing delivery time and costs.
Huafang Electric: Pioneer choice for high-performance IP68 waterproof connectors
Through vertically integrated supply chains, we ensure short delivery times (2-3 weeks) and high consistency (>99%), providing customers with highly reliable, low-cost solutions. Huafang Electric's connector series surpasses traditional designs in key performance indicators such as dynamic waterproofing, efficient installation, and flexible adaptability, providing solid support for domestic substitution in fields such as military and industrial automation.
