X Series-IP68 waterproof connector 5Pin/4Pin
P25X-5Pin IP68 Waterproof X-Branch Connector – Powerful 5-Pin Branching Solution for Outdoor Lighting
TheHF-P25X-5Pin is HUA FANG’s latest X-shaped branching IP68 waterproof connector, designed specifically for complex multi-path power splitting in modern outdoor lighting systems.
With one input and three outputs, this 5-pin model makes 3-phase lighting installations faster, cleaner, and more reliable — no junction boxes required.
Why Lighting Professionals Choose the P25X-5Pin

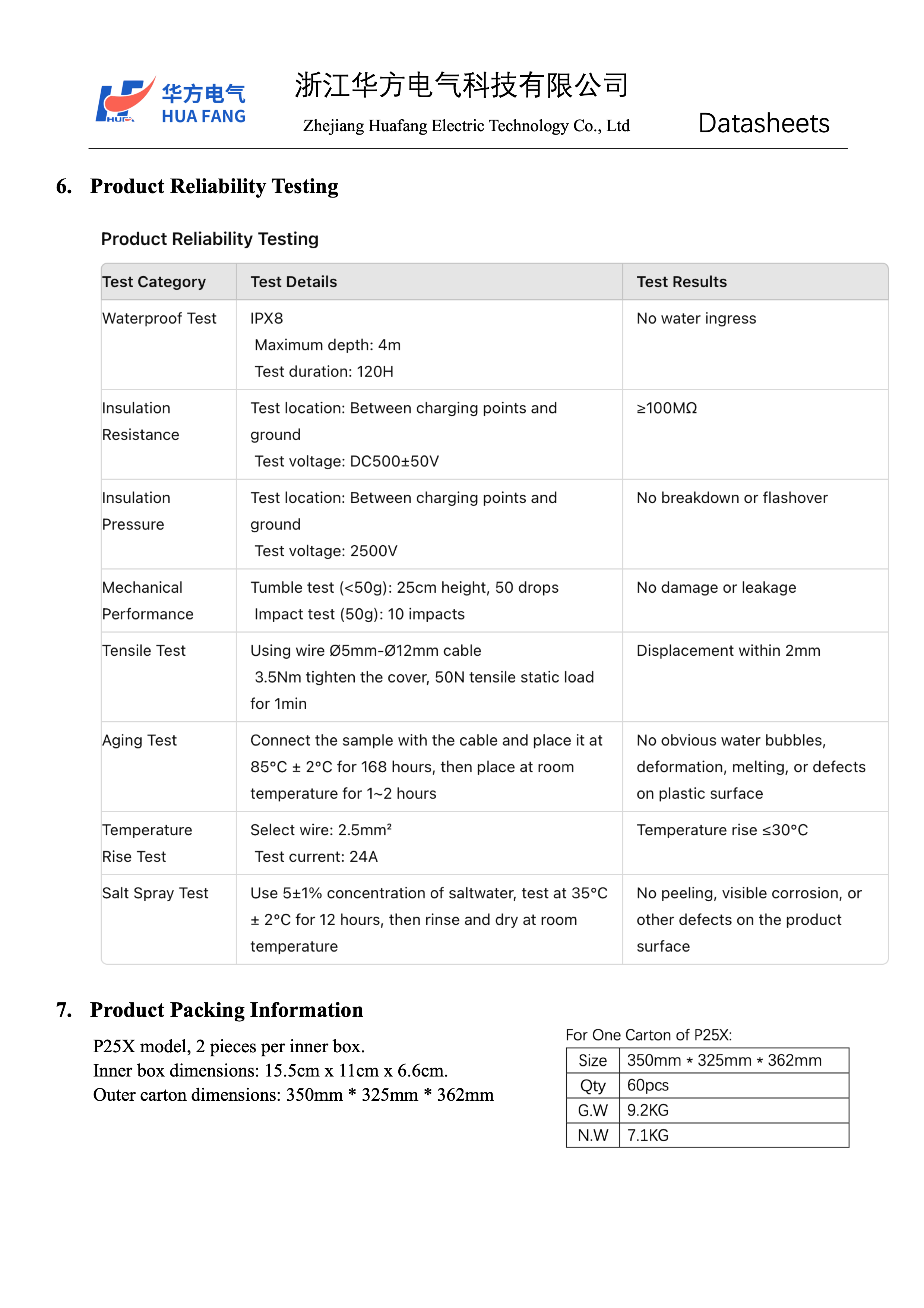

True IP68 Protection — Submersible up to 4 meters for 120 hours, perfect for fountains, pool lighting, underground wiring, and harsh weather.
5-Pin 3-Phase Ready — Supports L1/L2/L3 + N + PE, ideal for balanced RGBW, DMX, and high-power LED systems.

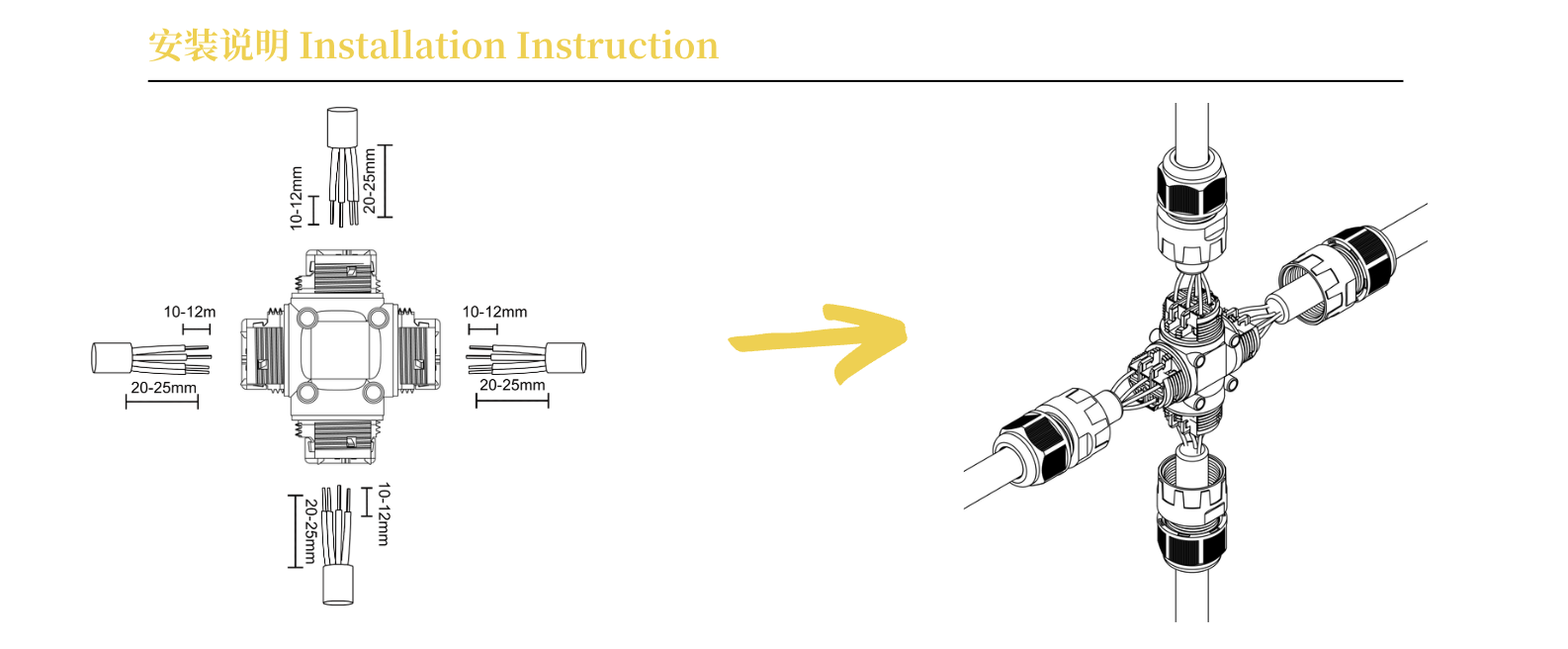

Ultra-Fast X-Branching — Tool-free quick wiring in 20–40 seconds; one cable in, three cables out.
Wide Cable Compatibility — Fits 5-9mm, 9-12mm, and 10-14mm cables with 0.5–2.5mm² wire section.
Extreme Durability — -40°C to +105°C operating range, nylon PA66/PA6 housing, silver-plated copper alloy terminals, and 5,000+ mating cycles.
Certified Quality — TUV, CE, ROHS, REACH compliant.

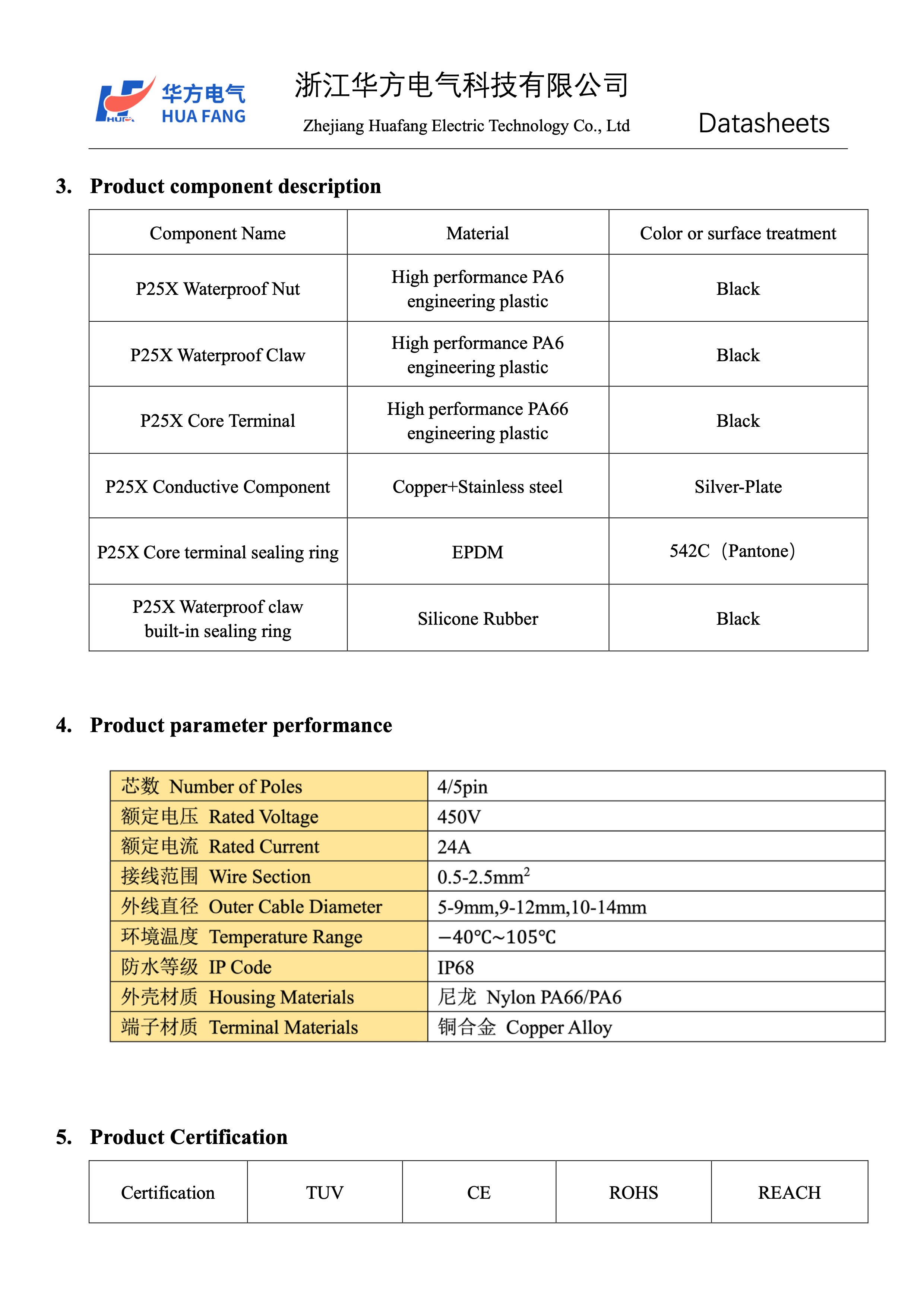

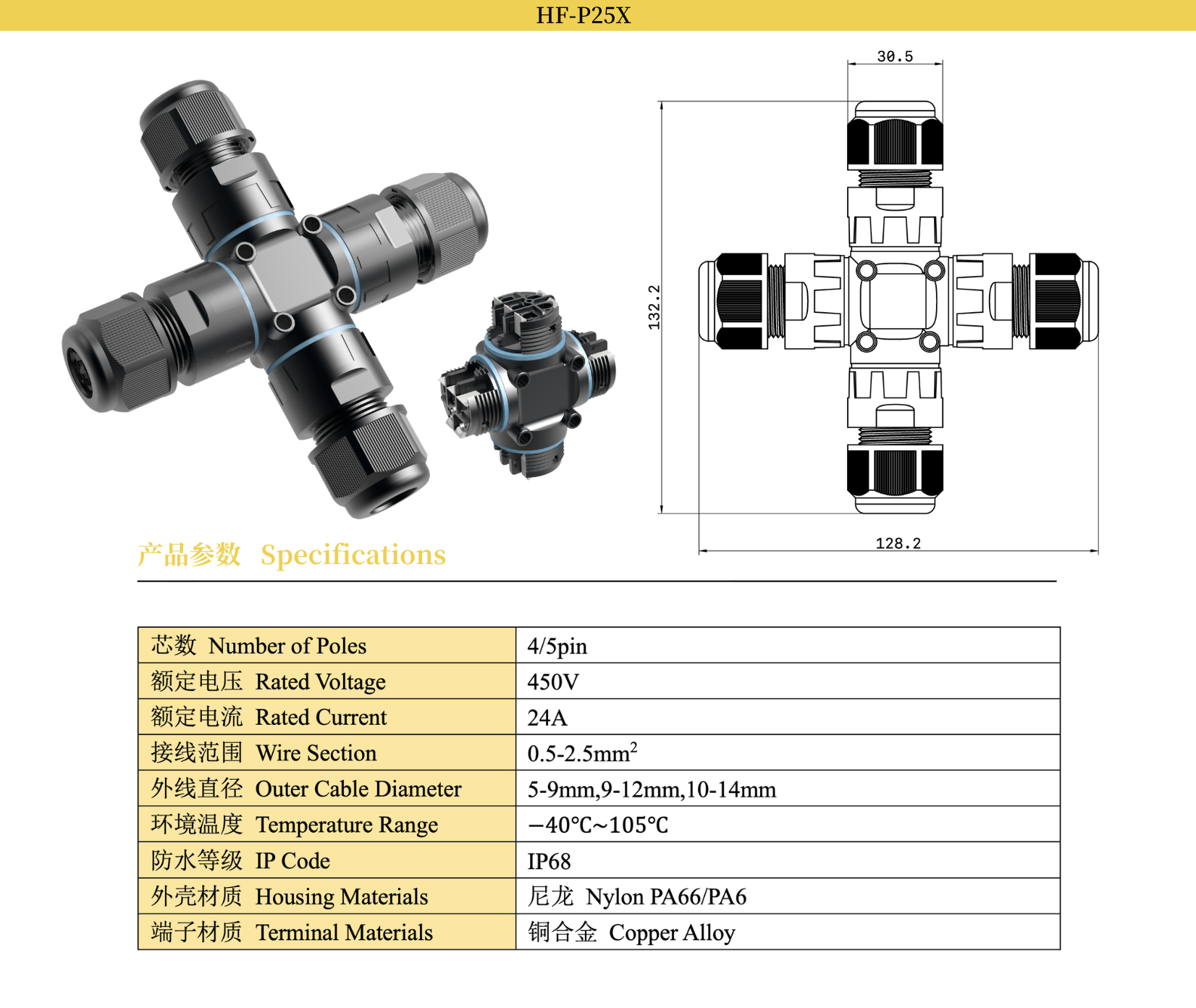

Technical Specifications

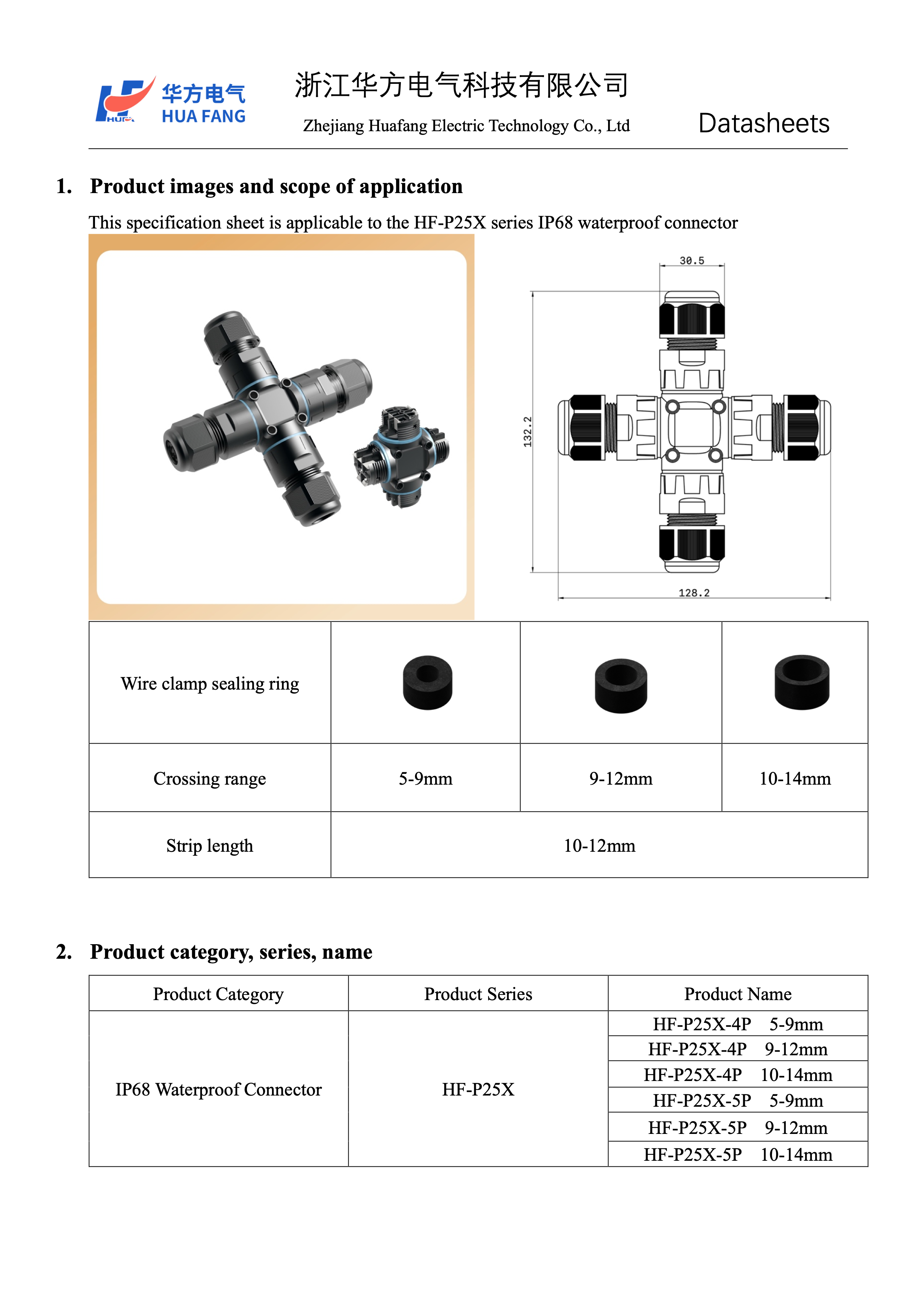

Model: HF-P25X-5Pin (X-Shaped Branch)
Number of Poles: 5 Pin
Rated Voltage: 450V AC
Rated Current: 24A
Wire Section: 0.5–2.5 mm²
Cable Diameter: 5-9mm / 9-12mm / 10-14mm
Temperature Range: -40°C ~ +105°C
IP Rating: IP68 (4m / 120 hours)
Housing: Nylon PA66/PA6
Terminal: Copper Alloy (Silver-Plated)
Perfect Applications
Complex multi-fixture street lighting
Facade and RGBW architectural lighting
Pool & fountain lighting systems
Landscape and garden lighting networks
Smart city and outdoor IoT projects
Whether you need reliable power splitting or a professional-grade waterproof solution, the P25X-5Pin X-branch connector delivers speed, safety, and performance that lighting installers trust.
HUA FANG – Making complex outdoor lighting connections simple and waterproof.
