X Series-IP68 waterproof connector 3Pin/2Pin

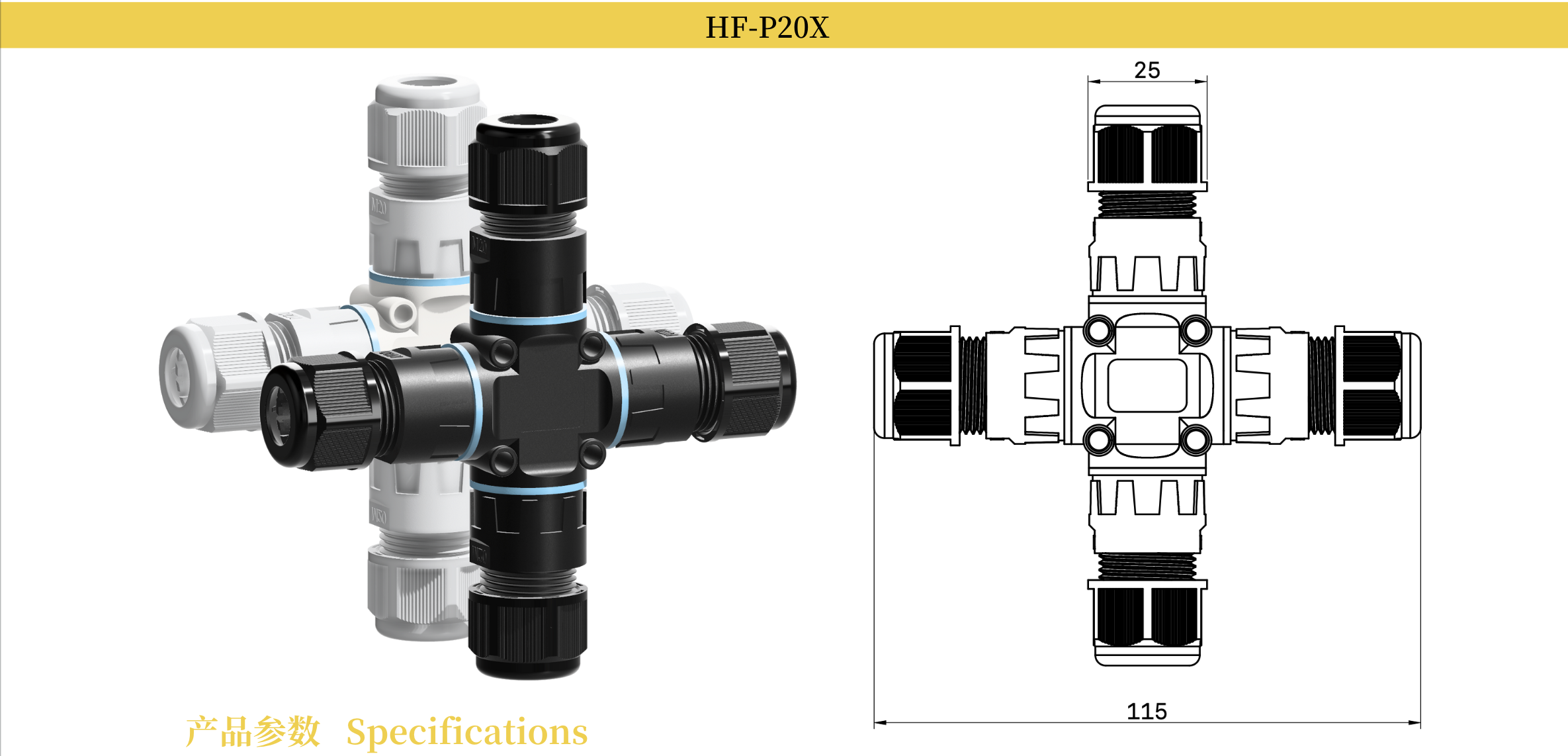

HF-P20X IP68 Waterproof X-Connector – The “One-to-Three” Beast That Kills Junction Boxes Forever
Need to split one cable into three directions without looking like you used duct tape and prayers?
Meet the HUA FANG HF-P20X IP68 X-connector — the cleanest, toughest, fastest 3-way branching solution on the planet.
One cable in → three cables out → zero leaks, zero boxes, zero regrets.
100 % IP68 on All Four Ports

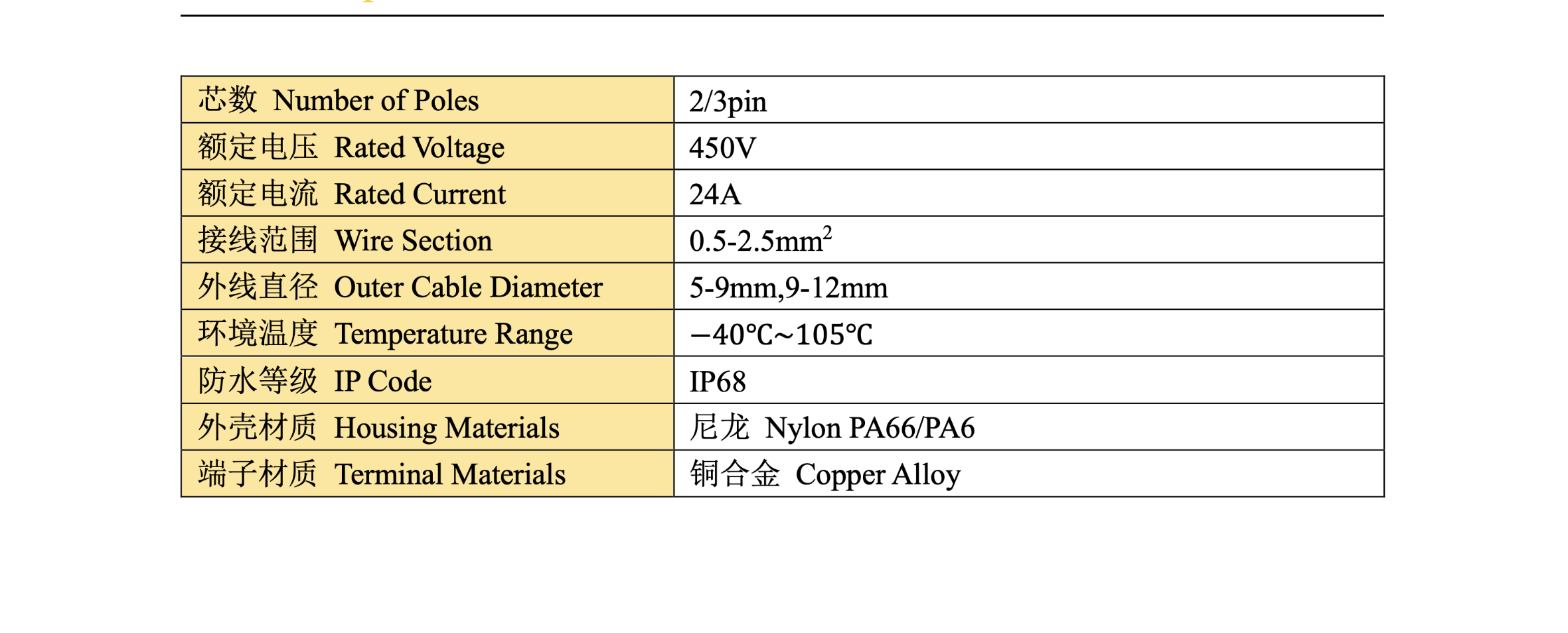

Bury it, drown it, forget it for 20 years — still perfectly sealed.2-Pin & 3-Pin, 24 A Per Leg
450 V / 24 A → up to 10 kW total. Powers three high-power LED floodlights, pumps, or heaters like it’s nothing.Super-Wide Cable Compatibility
Accepts 5–9 mm and 9–12 mm cables on every single port. Mix sizes freely — the P20X doesn’t judge.−40 °C to +105 °C Unbreakable
Survives Siberian winters and Dubai rooftops without cracking or melting.Nylon PA66/PA6 Armor + Copper Alloy Contacts
UV-proof, salt-proof, and tough enough to survive being driven over by a truck (yes, really).Tool-Free 40-Second Install

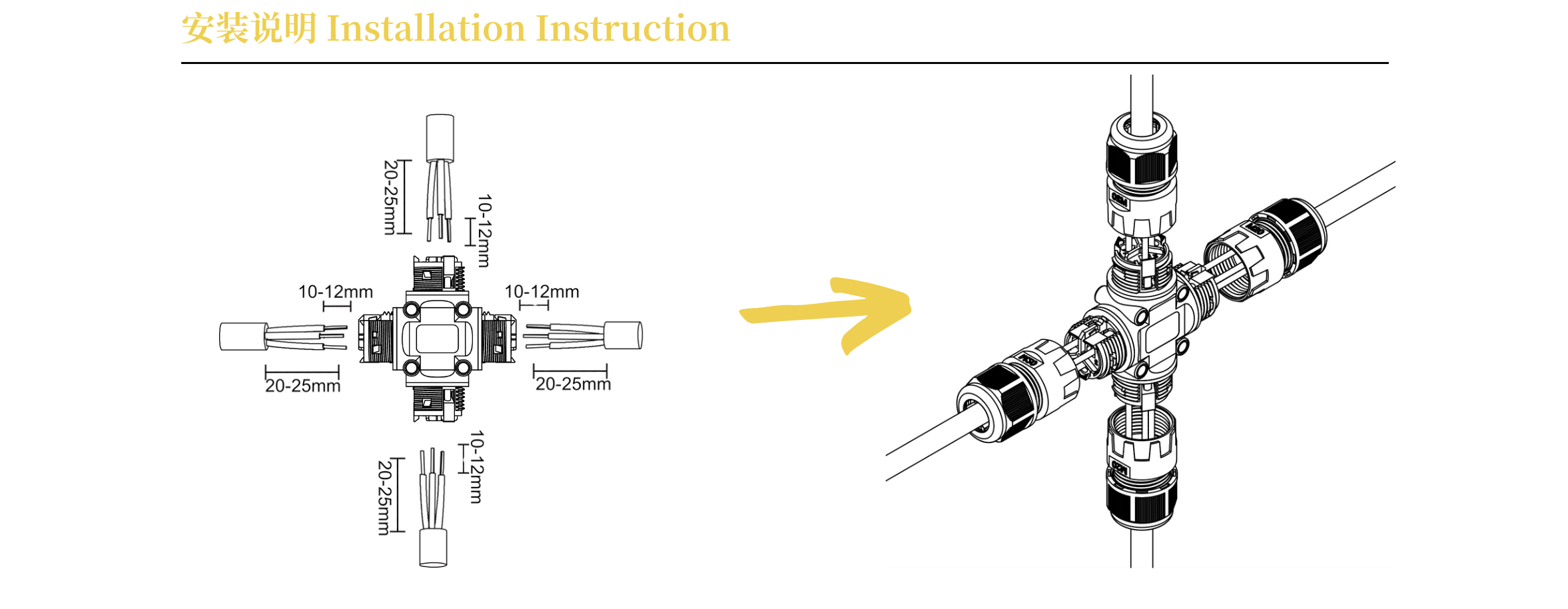

Strip 20–25 mm → push wires → hand-tighten four caps → done. Cleaner and 8× faster than any junction box nightmare you’ve ever had.
No gel. No tape. No ugly plastic boxes ruining your beautiful landscape.
Just a sleek, invisible, bomb-proof X-branch that looks factory-made.
Perfect for
Tree uplighting with three branches | fountain pump splitting | underground direct-burial star layouts | solar garden light grids | outdoor event power distribution | marine dock lighting
Hot Models
HF-P20X-2Pin (pure power split)
HF-P20X-3Pin (L+N+PE safe 3-way branching)
