P25 Male & Female Plug in Series 5Pin/4Pin

HF-P25MF IP68 Waterproof Male-Female Connector – The Multi-Pin Maestro for 3-Phase Lighting Magic

Connectors that drop the ball on multi-phase power? Not our style.
The HUA FANG HF-P25MF IP68 waterproof male-female connector is the quick-mate wizard for 4/5-pin setups, designed for 3-phase lighting (L1/L2/L3) with or without neutral—locking in reliable power for vibrant, balanced systems.

• IP68 Ironclad Protection
  Submersible 4m/120h+, fully dust-proof. Ideal for wet lighting installs like fountains or facades.

• 4/5-Pin Phase Powerhouse

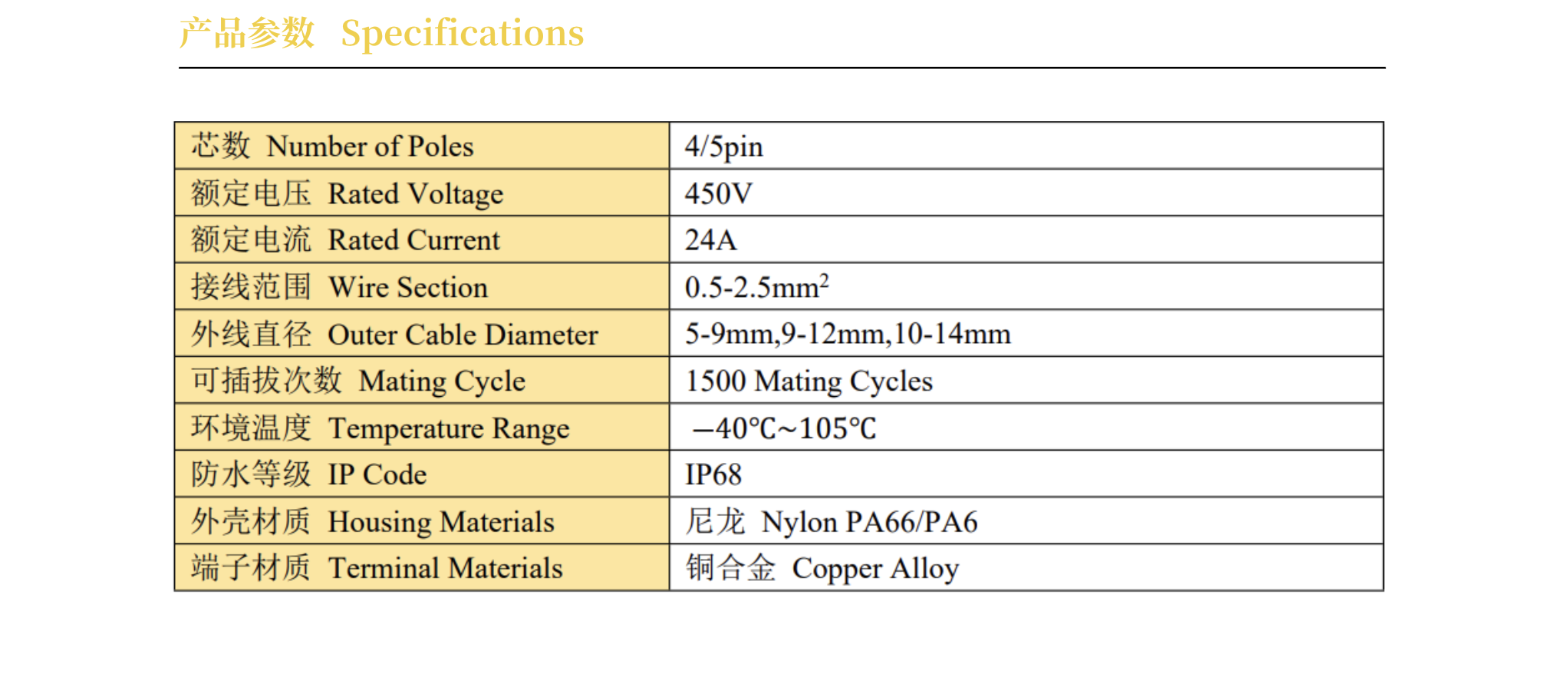

  450V / 24A per pin — 4Pin for 3-phase + ground (L1/L2/L3 + PE); 5Pin adds neutral (L1/L2/L3 + N + PE) for single-phase hybrids.

• Cable Compatibility Pro
  Handles 0.5–2.5mm² wires and outer cable diameters from 5–9, 9-12, 10-14mm. Mix phases without missing a beat.

• −40 °C to +105 °C Resilient
  Thrives in cold winters or hot spots, no sweat.

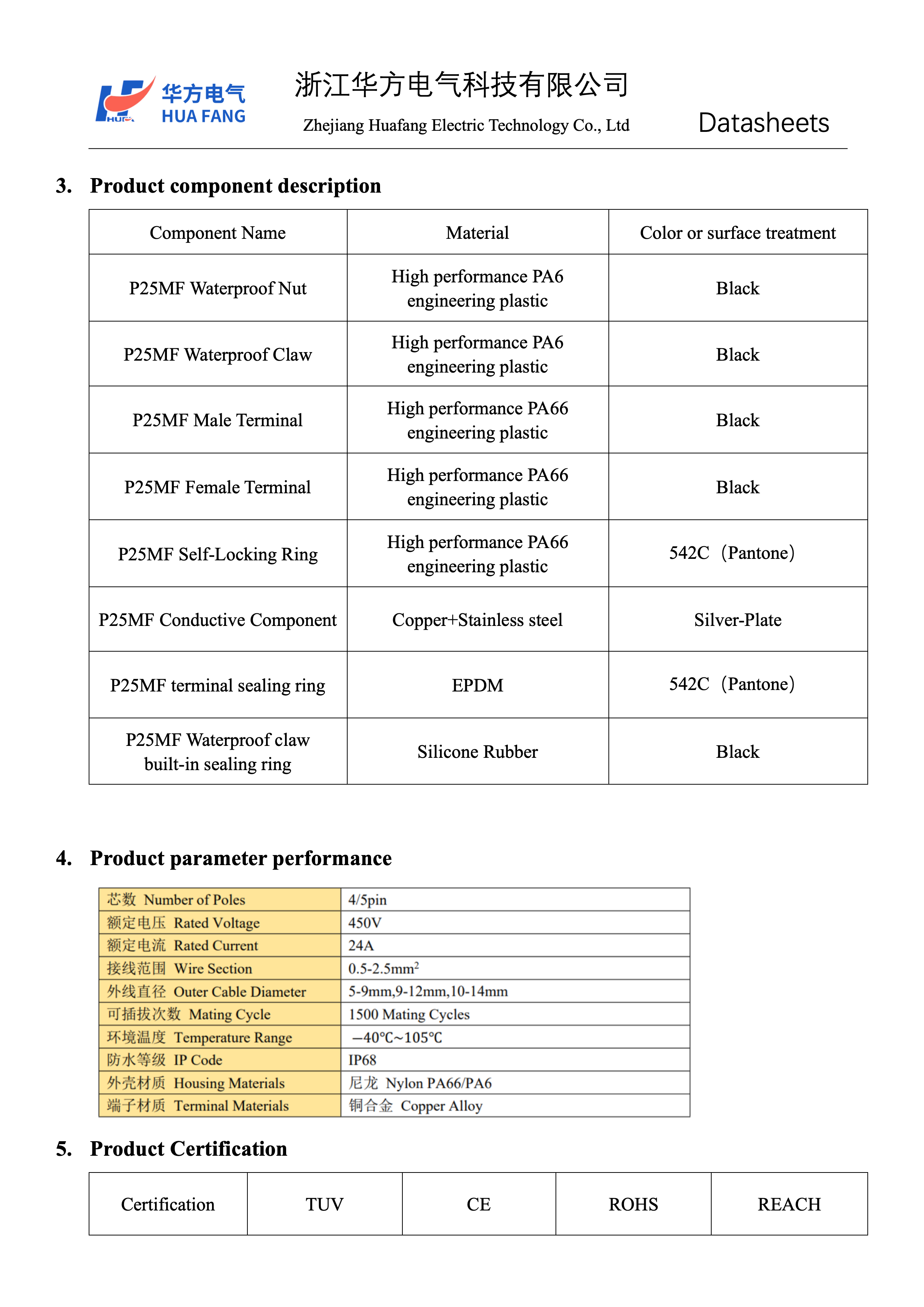

• Nylon PA66/PA6 + Copper Alloy Build
  UV/salt/impact-resistant, 1,500+ mating cycles for long-haul reliability.

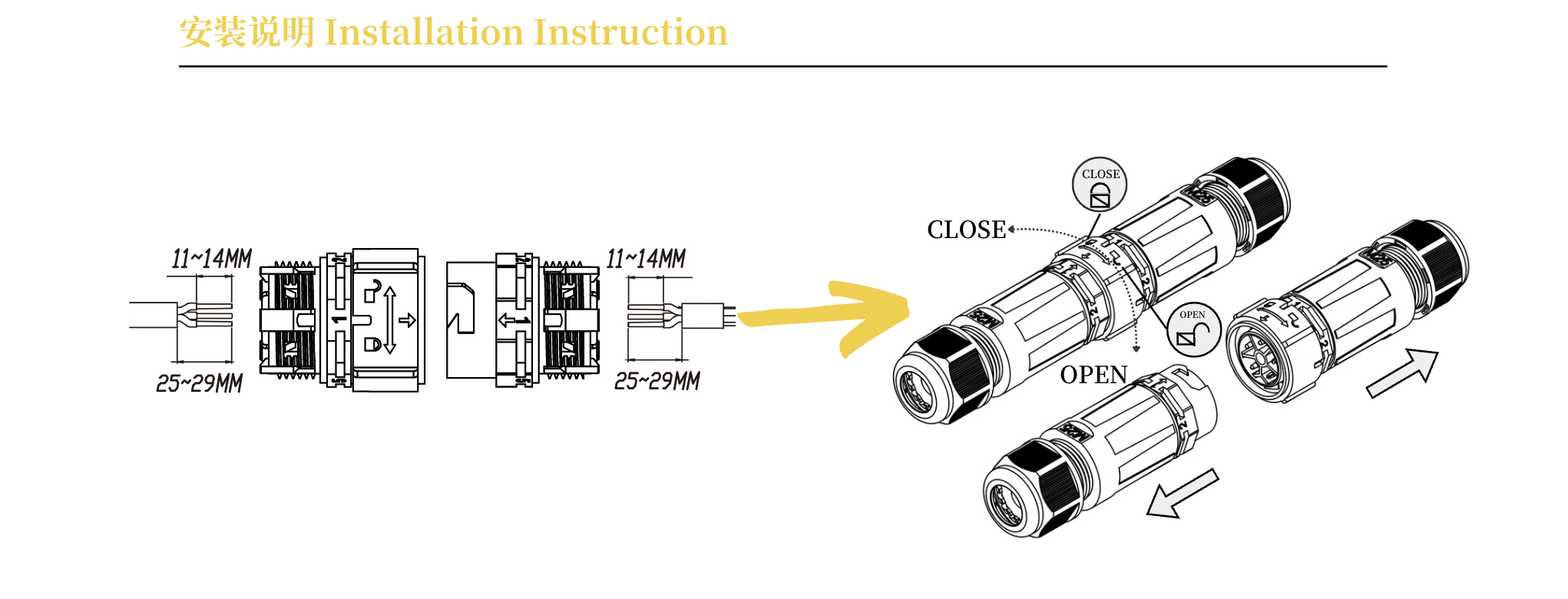

• 25-Second Twist-Lock Mate
  Strip → insert → push-pull lock. Tool-free, secure, faster than switching bulbs.

No fuss—just a seamless plug for 3-phase LED arrays, stage lights, or smart grids.

Ready for phase-perfect connections?
→Send Inquiry
→Download HF-P25MF Datasheet PDF

HUA FANG – Powering balanced brilliance, one secure mate at a time.
