Grey-RJ45-IP68 waterproof connector

Quantity:
Contact Now
add to cart

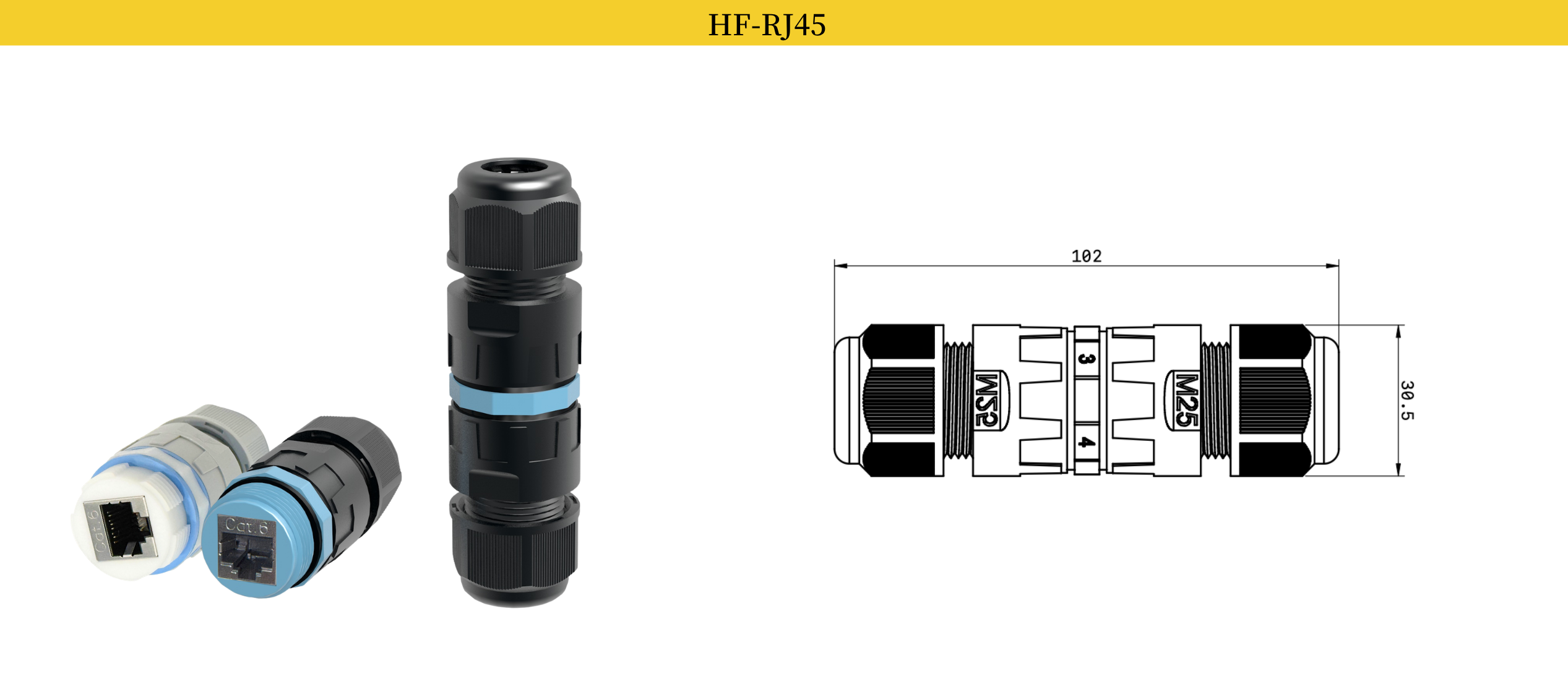

HF-RJ45 Grey

HF-RJ45 IP68 Waterproof RJ45 Connector – Built for the Toughest Conditions on Earth (and Beyond)

Most RJ45 plugs wave the white flag the moment they meet rain, dust, −40 °C frost, or +105 °C desert heat.
The HUA FANG HF-RJ45 IP68 waterproof RJ45 connector just smirks and says: “That’s cute.”

  • True IP68 Protection – Fully submersible to 1.5 m for extended periods and 100 % dust-tight. Perfect for outdoor surveillance cameras, industrial IoT, harbor equipment, smart street lighting, marine Wi-Fi, and field networks.

  • Cat6 Gigabit Performance – Gold-plated brass contacts + high-purity copper core deliver stable 1000 Mbps over 100 m with ultra-low latency.

  • Universal Cable Compatibility – Accepts 4–6.5 mm outer diameter Cat6/Cat5e shielded or unshielded cables – one connector rules them all.

  • Industrial-Grade Rating – 125 V / 1.5 A, fully supports PoE (802.3af/at) – power + data through a single cable.

  • −40 °C to +105 °C Temperature Range – Works flawlessly from Siberian winters to Middle East summers.

  • Military-Grade Nylon PA66/PA6 Housing – UV-resistant, impact-resistant, salt-spray-proof – looks brand-new after 10 years outdoors.

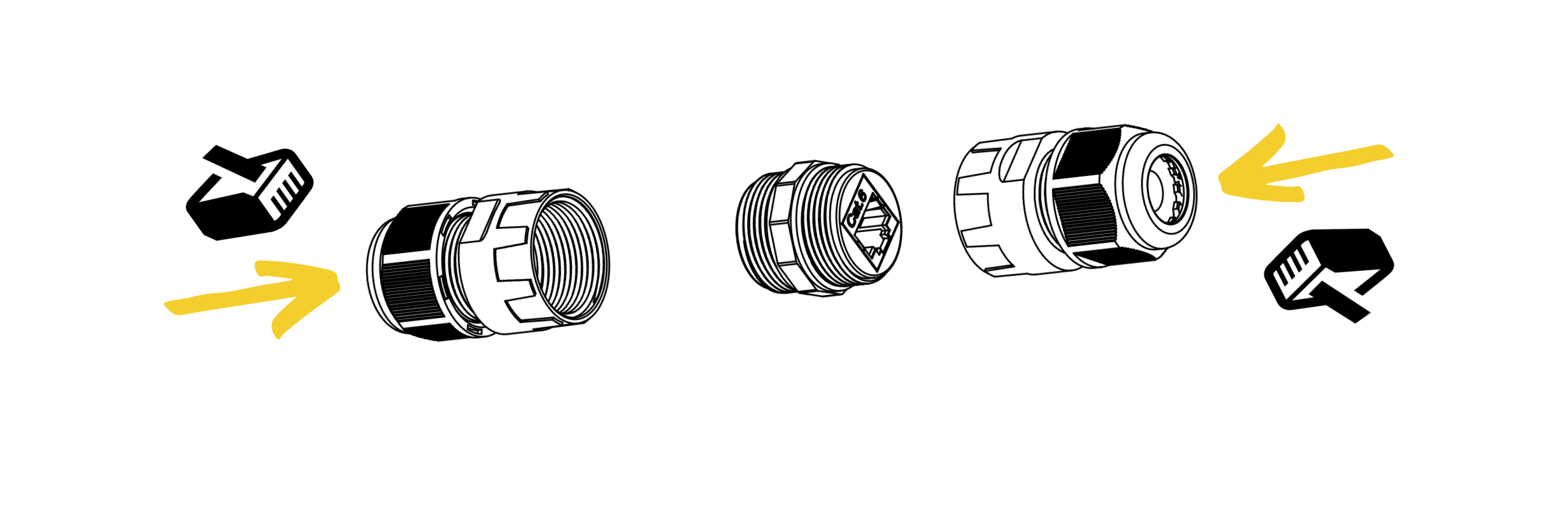

30-Second Tool-Free Installation
Strip → Insert → Hand-tighten the waterproof gland → Done. No crimping tool required – faster than your morning coffee.

Say goodbye to water ingress, signal drops and endless replacements. With the HF-RJ45 IP68 waterproof RJ45 connector, your outdoor Ethernet network is truly “install once, forget forever”.

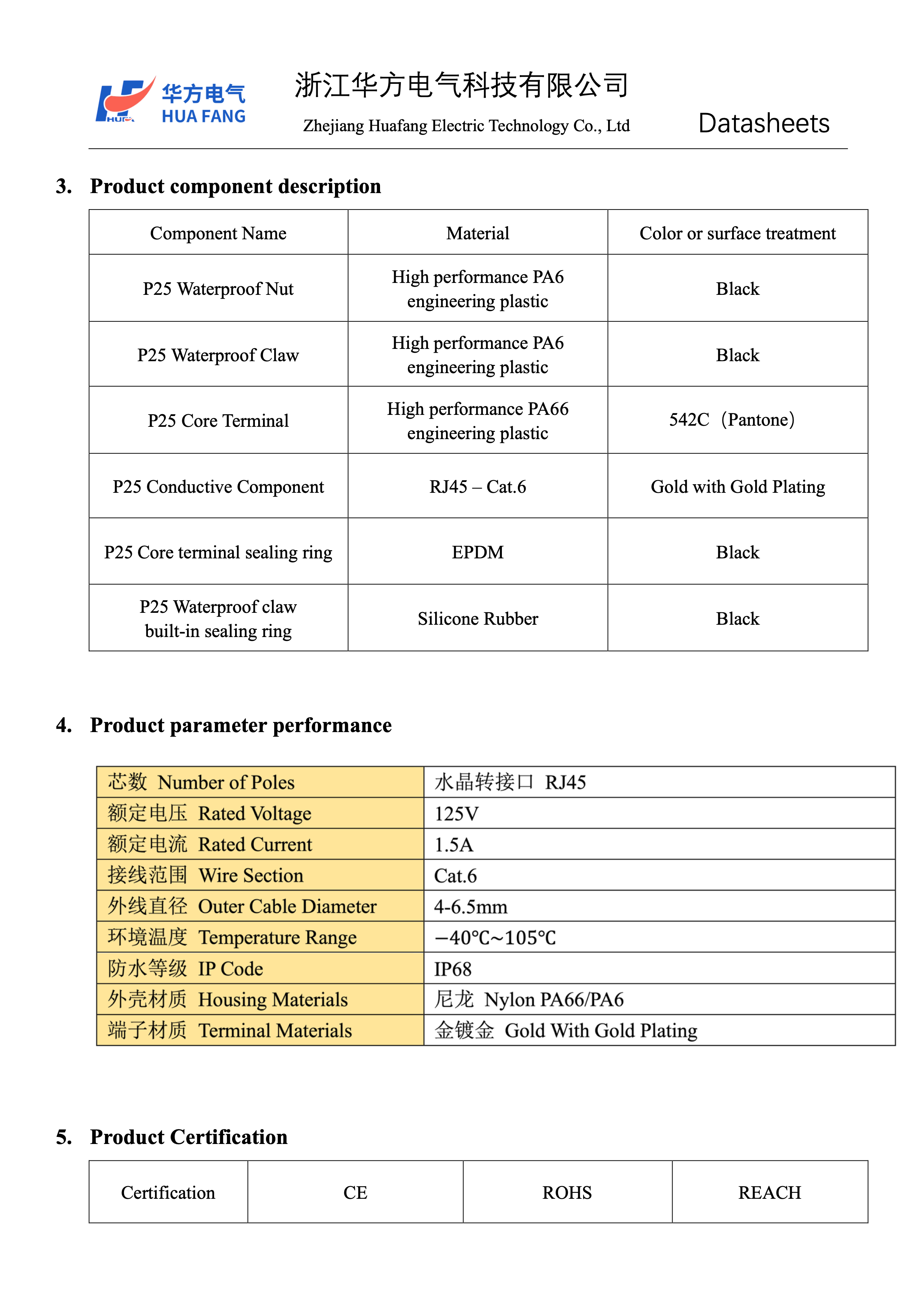

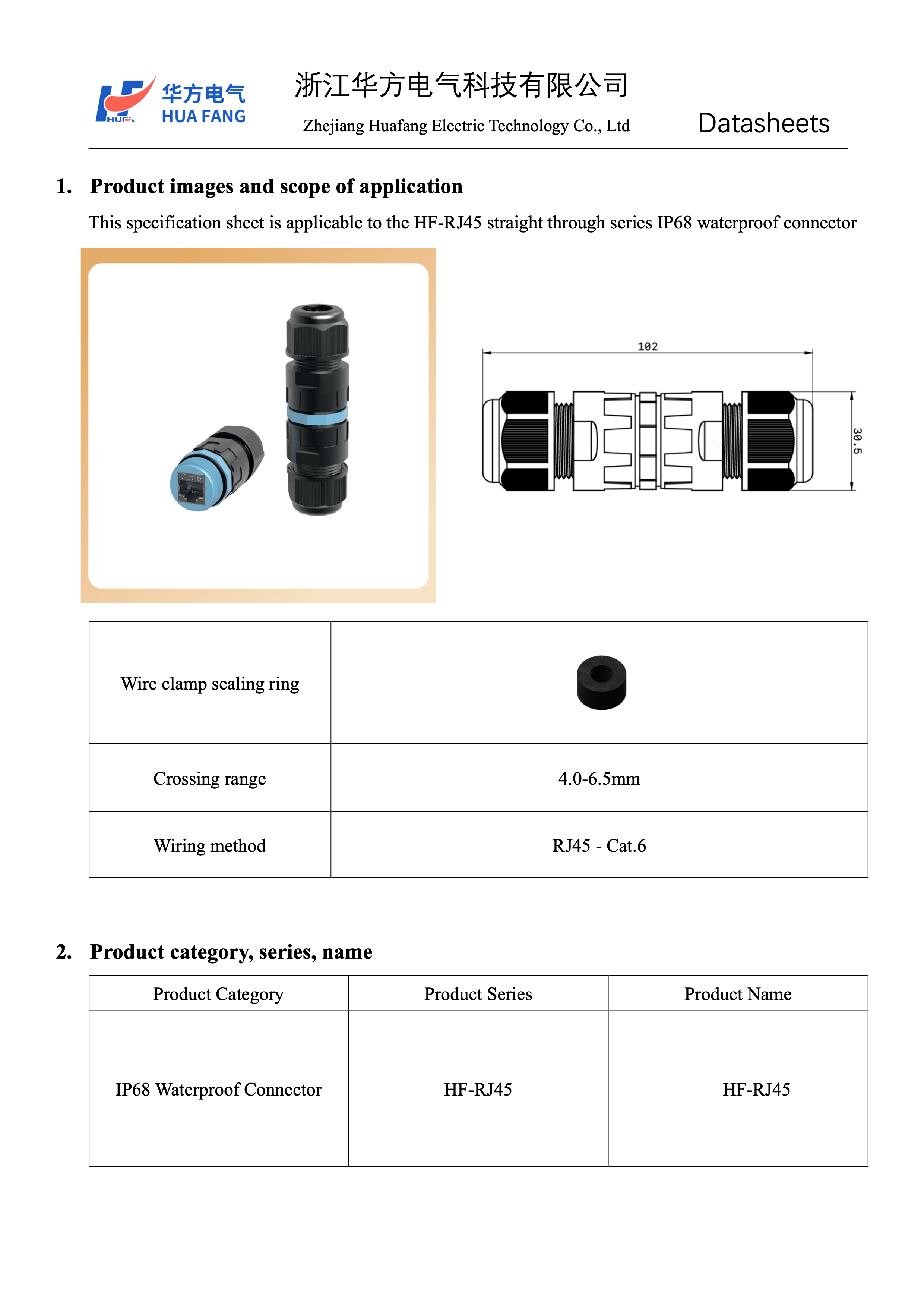

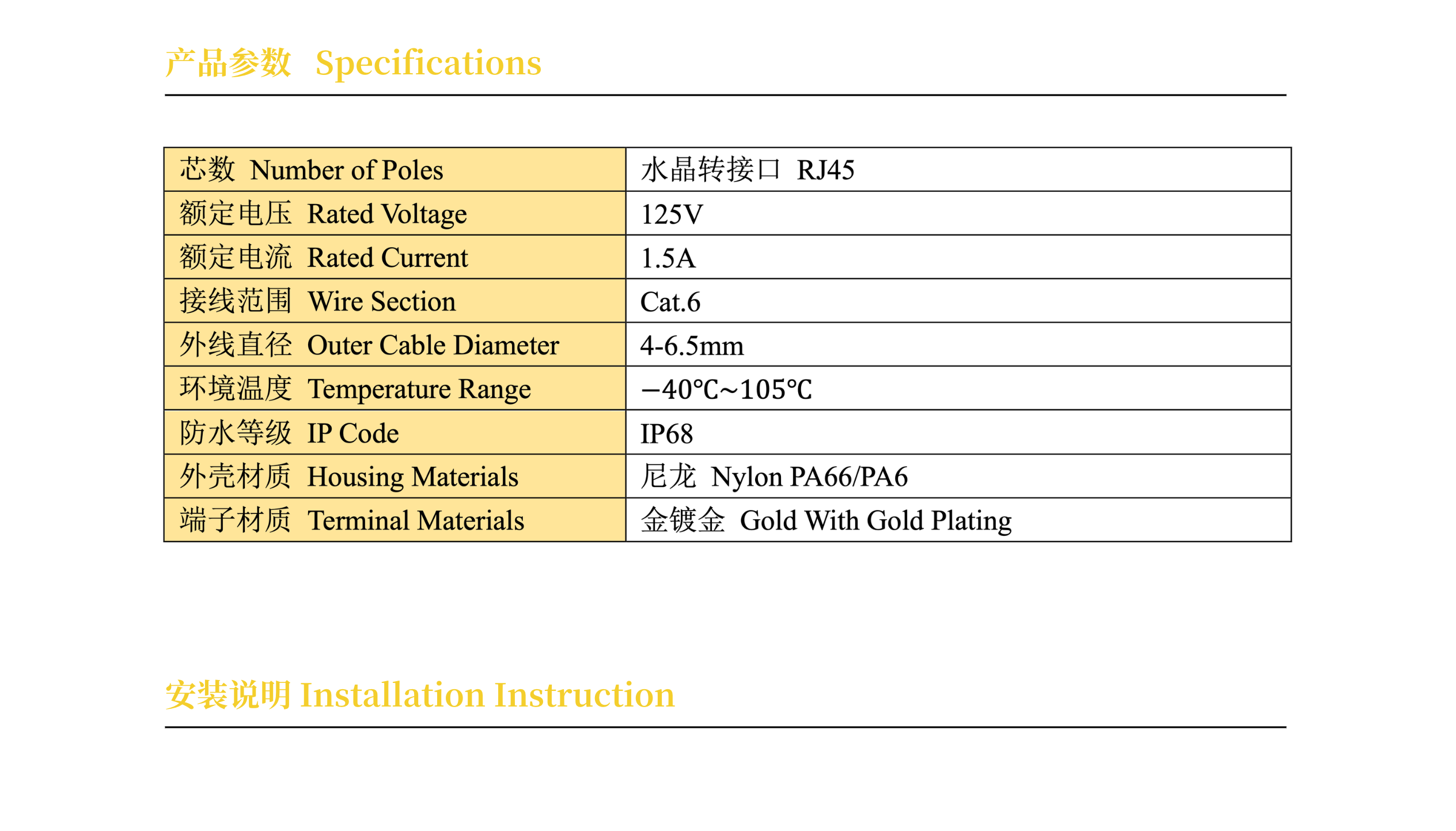

Specifications and Answers:

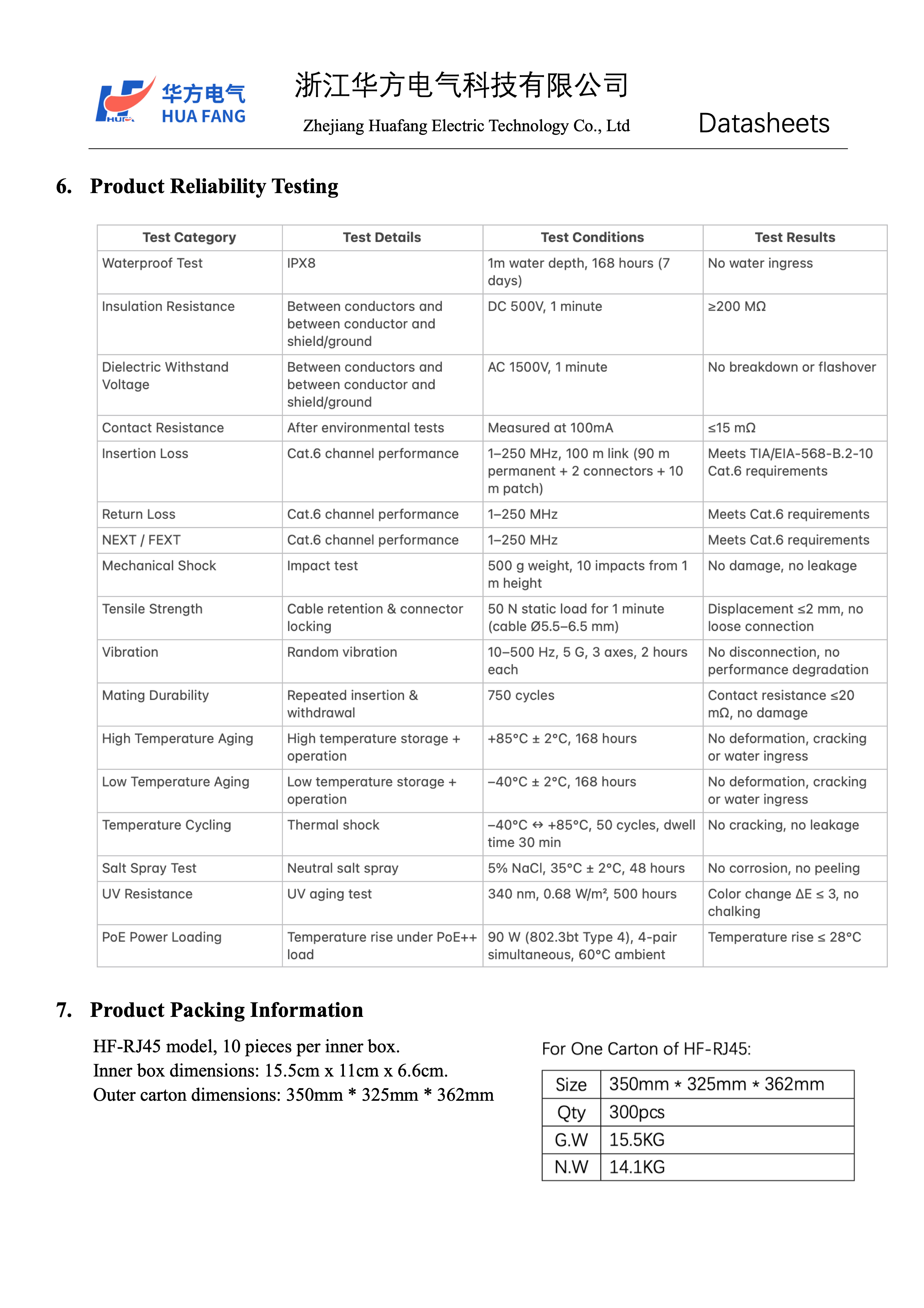

1.  Gigabit Speed (Gb/second) Yes – fully supports 1000Base-T (1 Gbps full duplex). Tested with Fluke DSX-8000 to Cat.6 250 MHz channel standard over 100 m link (90 m permanent link + 2 connectors + 10 m patch cords). Real-world packet loss < 0.01%.


2.  PoE (Power over Ethernet) Compatibility Fully compatible with 802.3af / 802.3at / 802.3bt (PoE++) Maximum tested power: 90 W (4-pair PoE++, Type 4) Temperature rise ≤ 28 °C under 90 W full load at 60 °C ambient – perfectly safe for high-power outdoor IP cameras, Wi-Fi 6 APs, 5G small cells, etc.

Ready for unbreakable connectivity?
→Send Inquiry

HUA FANG – Keeping the world connected, no matter how wet, hot, or wild it gets.
